Views: 37 Author: Site Editor Publish Time: 2020-07-28 Origin: Site

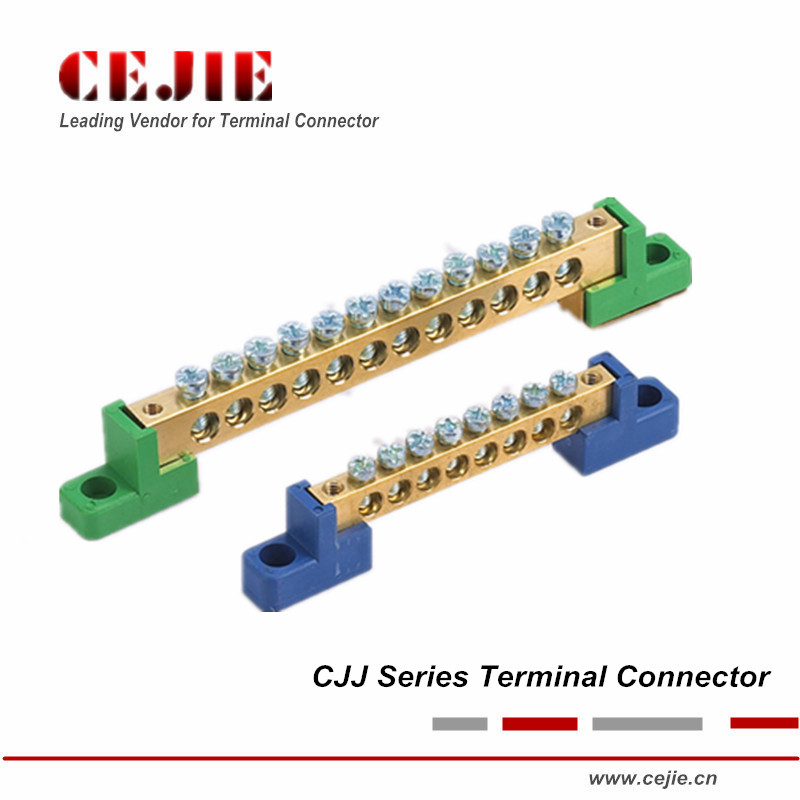

Model Description
Material
PA,Polyamide 66，94V-2grade.inflaming ratarding,good resist dissolve,good bounce impact force,Working Temperature:-30~110°C
Brass,screw is iron plated zinc
Voltage:250V/380V
Color:blue or green
Technical Features
Brass conductors
Galvanized steel screws included
Insulation between phases
Front rmovable protection screen
Self-extinguishing isulation structure:UL94-V2
Quick hook-up on Din rails
Model Mark
| E Item no. | N Item no. | Way | Installation dimension | Outline Dimensions | Rated Current(A) | Cross Sectional |
| CJJ6904E | CJJ6904N | 4 | 58 | 70*11*22 | 63A | 6*9 |
| CJJ6906E | CJJ6906N | 6 | 71 | 83*11*22 | 63A | 6*9 |
| CJJ6908E | CJJ6908N | 8 | 84 | 96*11*22 | 63A | 6*9 |
| CJJ6910E | CJJ6910N | 10 | 97 | 109*11*22 | 63A | 6*9 |
| CJJ6912E | CJJ6912N | 12 | 110 | 122*11*22 | 63A | 6*9 |
| CJJ6914E | CJJ6914N | 14 | 123 | 135*11*22 | 63A | 6*9 |
| CJJ6916E | CJJ6916N | 16 | 136 | 148*11*22 | 63A | 6*9 |
| E Item no. | N Item no. | Way | Installation dimension | Outline Dimensions | Rated Current(A) | Cross Sectional |
| CJJ81204E | CJJ81204N | 4 | 66 | 80*12.5*25 | 125A | 8*12 |
| CJJ81206E | CJJ81206N | 6 | 81 | 95*12.5*25 | 125A | 8*12 |
| CJJ81208E | CJJ81208N | 8 | 96 | 110*12.5*25 | 125A | 8*12 |
| CJJ81210E | CJJ81210N | 10 | 111 | 125*12.5*25 | 125A | 8*12 |
| CJJ81212E | CJJ81212N | 12 | 126 | 140*12.5*25 | 125A | 8*12 |
| CJJ81214E | CJJ81214N | 14 | 141 | 155*12.5*25 | 125A | 8*12 |
| CJJ81216E | CJJ81216N | 16 | 154 | 170*12.5*25 | 125A | 8*12 |
